Time of use – Deye
Bardzo ciekawa funkcjonalność falowników hybrydowych Deye, która pozwala „zaprogramować” pracę inwentera z podziałem na godziny.
Odpowiednie ustawienie pozwala na określenie kilku parametrów:
- Zakres godzin w jakich dane parametry mają być stosowane
- Stopień naładowania/rozładowania baterii
- Moc oddawanej energii z baterii
- Ładowanie baterii z sieci.
Sam falownik pozwala nam zarządzać baterią poprzez napięcia i SOC, dlatego poniżej opiszę dwa sposoby wyświetlania kalendarza.
Za prawidłowe wyświetlanie danych w time of use odpowiada wcześniej zainstalowany kod EspHome. Jeżeli stosujecie kod przedstawiony na tej stronie to nie będzie najmniejszych problemów z wyświetleniem naszego Time Of Use. Sposób instalacji kodu jest już przedstawiony w tym wpisie , wszystkie osoby które trafiły na mojego bloga pierwszy raz zapraszam do lektury.
Time of use – wersja SOC
Aby ułatwić sobie pracę, skorzystaj z przycisku kopiuj:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 |

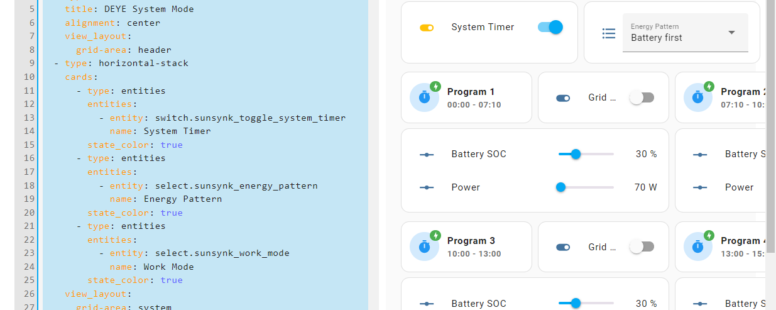

type: custom:layout-card layout_type: custom:grid-layout cards: - type: custom:mushroom-title-card title: DEYE System Mode alignment: center view_layout: grid-area: header - type: horizontal-stack cards: - type: entities entities: - entity: switch.sunsynk_toggle_system_timer name: System Timer state_color: true - type: entities entities: - entity: select.sunsynk_energy_pattern name: Energy Pattern state_color: true - type: entities entities: - entity: select.sunsynk_work_mode name: Work Mode state_color: true view_layout: grid-area: system - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 1 secondary: >- {{ states("sensor.sunsynk_time_slot_1") }} - {{ states("sensor.sunsynk_time_slot_2") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time1 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time1 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time1 name: Power hide_state: false grow: true view_layout: grid-area: prog1 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 2 secondary: >- {{ states("sensor.sunsynk_time_slot_2") }} - {{ states("sensor.sunsynk_time_slot_3") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time2 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time2 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time2 name: Power hide_state: false grow: true view_layout: grid-area: prog2 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 3 secondary: >- {{ states("sensor.sunsynk_time_slot_3") }} - {{ states("sensor.sunsynk_time_slot_4") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time3 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time3 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time3 name: Power hide_state: false grow: true view_layout: grid-area: prog3 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 4 secondary: >- {{ states("sensor.sunsynk_time_slot_4") }} - {{ states("sensor.sunsynk_time_slot_5") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time4 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time4 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time4 name: Power hide_state: false grow: true view_layout: grid-area: prog4 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 5 secondary: >- {{ states("sensor.sunsynk_time_slot_5") }} - {{ states("sensor.sunsynk_time_slot_6") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time5 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time5 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time5 name: Power hide_state: false grow: true view_layout: grid-area: prog5 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 6 secondary: >- {{ states("sensor.sunsynk_time_slot_6") }} - {{ states("sensor.sunsynk_time_slot_1") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time6 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_soc_time6 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time6 name: Power hide_state: false grow: true view_layout: grid-area: prog6 layout: grid-template-columns: 2fr 2fr 2fr 2fr grid-template-rows: auto grid-template-areas: | ". header header ." ". system system ." ". prog1 prog2 ." ". prog3 prog4 ." ". prog5 prog6 ." mediaquery: '(max-width: 800px)': grid-template-columns: auto grid-template-areas: | "header" "system" "prog1" "prog2" "prog3" "prog4" "prog5" "prog6" |

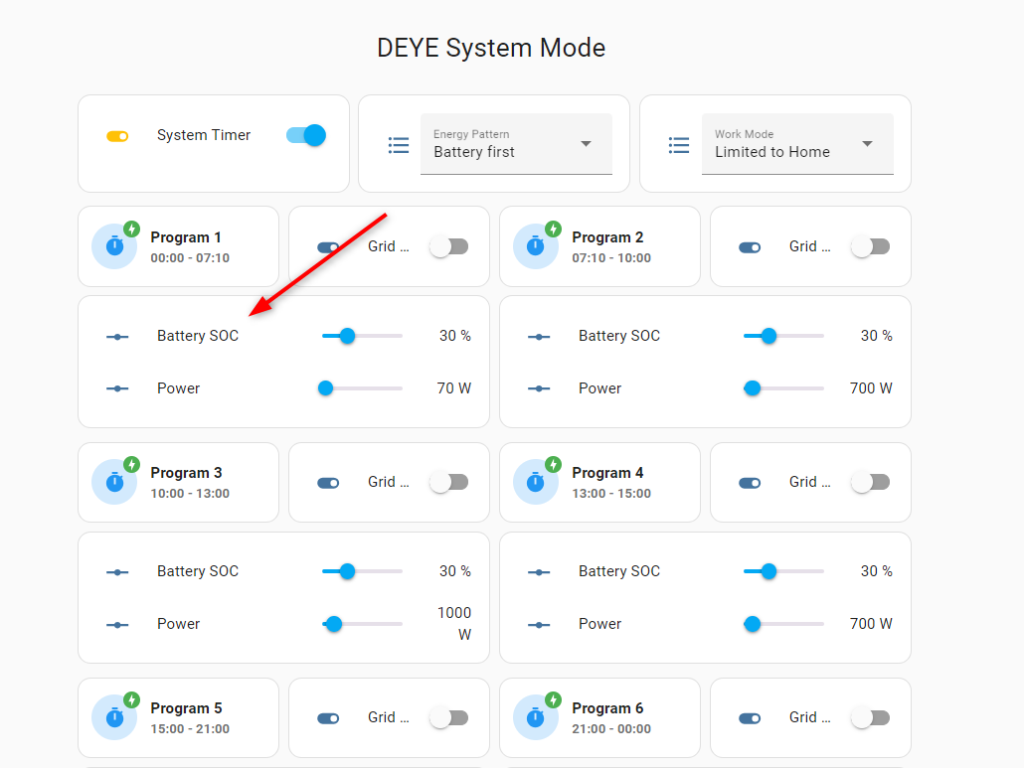

Jeżeli wszystko zrobiliśmy prawidłowo to zobaczymy nasz kalendarz.
Time of use – wersja napięciowa
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 |
type: custom:layout-card layout_type: custom:grid-layout cards: - type: custom:mushroom-title-card title: DEYE System Mode alignment: center view_layout: grid-area: header - type: horizontal-stack cards: - type: entities entities: - entity: switch.sunsynk_toggle_system_timer name: System Timer state_color: true - type: entities entities: - entity: select.sunsynk_energy_pattern name: Energy Pattern state_color: true - type: entities entities: - entity: select.sunsynk_work_mode name: Work Mode state_color: true view_layout: grid-area: system - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 1 secondary: >- {{ states("sensor.sunsynk_time_slot_1") }} - {{ states("sensor.sunsynk_time_slot_2") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time1 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time1 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time1 name: Power hide_state: false grow: true view_layout: grid-area: prog1 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 2 secondary: >- {{ states("sensor.sunsynk_time_slot_2") }} - {{ states("sensor.sunsynk_time_slot_3") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time2 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time2 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time2 name: Power hide_state: false grow: true view_layout: grid-area: prog2 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 3 secondary: >- {{ states("sensor.sunsynk_time_slot_3") }} - {{ states("sensor.sunsynk_time_slot_4") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time3 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time3 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time3 name: Power hide_state: false grow: true view_layout: grid-area: prog3 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 4 secondary: >- {{ states("sensor.sunsynk_time_slot_4") }} - {{ states("sensor.sunsynk_time_slot_5") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time4 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time4 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time4 name: Power hide_state: false grow: true view_layout: grid-area: prog4 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 5 secondary: >- {{ states("sensor.sunsynk_time_slot_5") }} - {{ states("sensor.sunsynk_time_slot_6") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time5 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time5 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time5 name: Power hide_state: false grow: true view_layout: grid-area: prog5 - type: vertical-stack cards: - type: horizontal-stack cards: - type: custom:mushroom-template-card primary: Program 6 secondary: >- {{ states("sensor.sunsynk_time_slot_6") }} - {{ states("sensor.sunsynk_time_slot_1") }} icon: mdi:timer multiline_secondary: false badge_icon: mdi:lightning-bolt icon_color: blue badge_color: green fill_container: true - type: entities entities: - entity: switch.sunsynk_system_mode_grid_charge_time6 name: Grid Charge state_color: true - type: entities entities: - type: custom:slider-entity-row entity: number.sunsynk_system_mode_v_time6 name: Battery SOC hide_state: false grow: true - type: custom:slider-entity-row entity: number.sunsynk_system_mode_power_time6 name: Power hide_state: false grow: true view_layout: grid-area: prog6 layout: grid-template-columns: 2fr 2fr 2fr 2fr grid-template-rows: auto grid-template-areas: | ". header header ." ". system system ." ". prog1 prog2 ." ". prog3 prog4 ." ". prog5 prog6 ." mediaquery: '(max-width: 800px)': grid-template-columns: auto grid-template-areas: | "header" "system" "prog1" "prog2" "prog3" "prog4" "prog5" "prog6" |

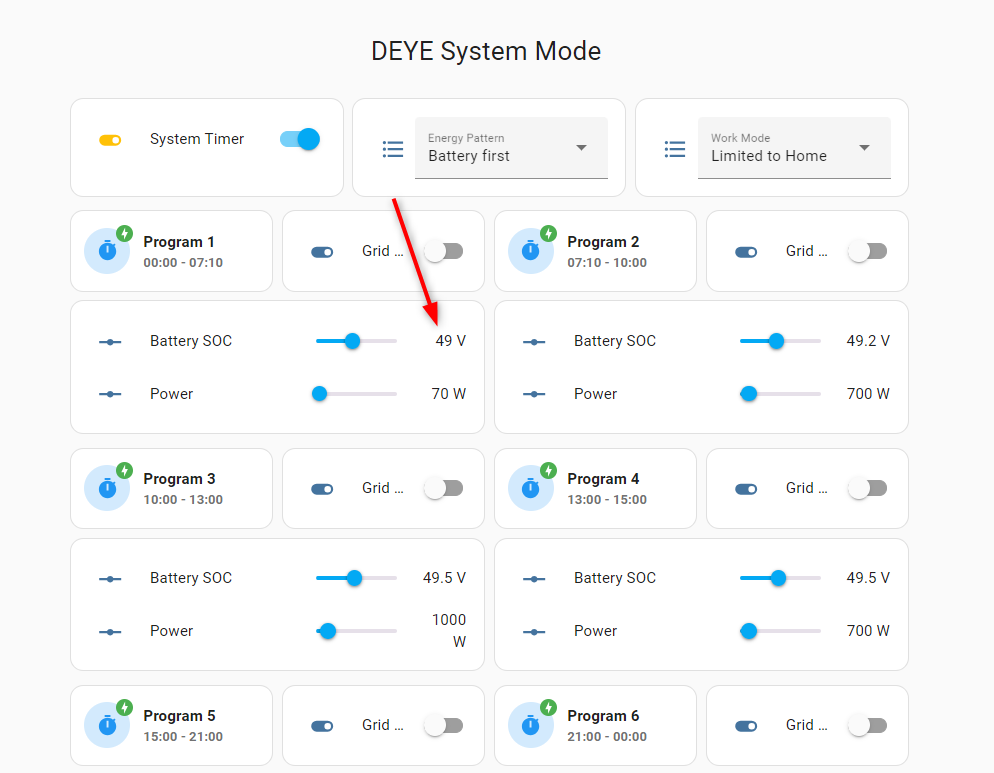

Jeżeli wszystko zrobiliśmy prawidłowo to zobaczymy nasz kalendarz.
